Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers

Name: Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers
Brand: ACEY
Price: 2480 USD

Quality Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers for sale

Vacuum : -98KPa (without vacuum pump)

Packaging Details : Plywood Case

Place of Origin : China

Model Number : ACEY-EVM-1L

Brand Name : ACEY

Payment Terms : T/T,PayPal,L/C,Western Union

Certification : CE

Rated power : 0.75KW, 220V;

Effective volume : equipped with a 1L tank

After-sales Service : 24/7 Technical Support

Stirring speed : 0-1400 rpm

Price : USD 2480~2584/Set

Weight : 90KG

Delivery Time : 7~35 Days

Warranty : 1 Year Warranty With Lifetime Support

MOQ : 1 Set

Overall size : 705mm×605mm×305mm (height×length×width)

Supply Ability : 200 Sets/Month

Contact Now

Laboratory Pouch Cell Assembly Vacuum Mixing Machine With 1L Stainless Steel Containers

The ACEY-EVM-1L vacuum mixer is a compact laboratory unit designed for efficient vacuum mixing and dispersion. It features programmable control over speed, time, and rotational direction, allowing for customized process parameters. Equipped with a stainless steel mixing tank and an integrated water cooling system, it ensures optimal performance and temperature stability during operation.

Key Features

1L double-layer stainless steel container made of high-quality 304 stainless steel, precision polished for high accuracy
Gearbox frequency conversion adjustment for selecting different speeds and torque based on process requirements and material viscosity
Double-dispersion blade design for thorough material mixing with up/down and circular motion
Automatic stop function while maintaining vacuum state
Industry-leading soft sealing technology maintains -0.098Mpa vacuum for over 24 hours
Precision guide post support with cylinder-driven automatic barrel opening and closing

Technical Specifications

Rated Power	0.75KW, 220V
Stirring Speed	0-1400 rpm, speed regulation by frequency converter
Vacuum Level	-98KPa (without vacuum pump)
Effective Volume	Equipped with 1L tank
Barrel Opening/Closing	Cylinder-driven upper cover mechanism
Overall Dimensions	705mm × 605mm × 305mm (height × length × width)
Timing Function	Programmable timing 0-99 hours
Lid Features	Vacuum gauge, vacuum port, and other accessories
Overall Weight	Approximately 90kg

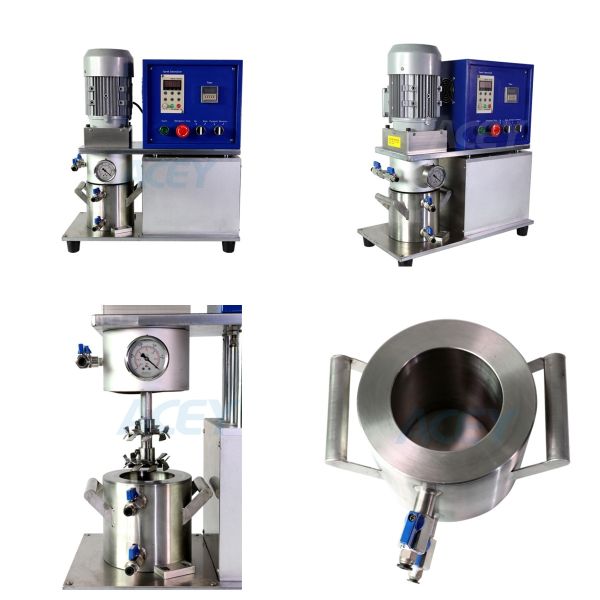

Product Display
